Surveyor for Image-Pro®

Objective Imaging's Surveyor with Turboscan fast mosaic acquisition is now available as the OASIS Turboscan Capture Driver for Media Cybernetics Image-Pro version 5.1 or higher.

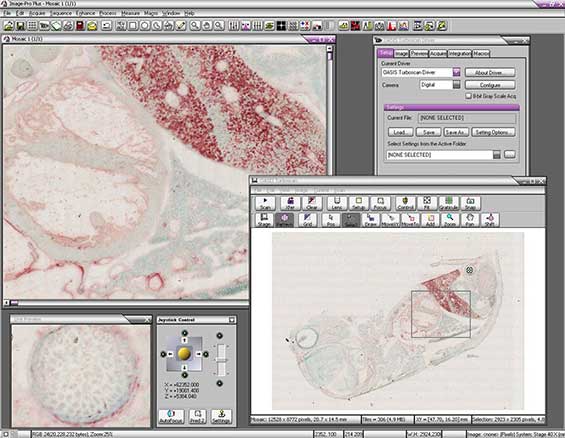

Click on the image for a higher resolution view.

The OASIS Turboscan capture driver includes the scanning and mosaic imaging features of the stand-alone Surveyor application, integrated within the Image-Pro environment:

Mosaic Image Window

	Special mosaic image window
	Manages very large Surveyor mosaic data sets independently from Image-Pro size / memory restrictions
	Full Surveyor specimen map interaction for pattern definition, relocation, and mosaic zoom and pan
	Status readout of mosaic and position information

Mosaic Image Transfer

	Send to Image-Pro as full or reduced resolution mosaic
	Send to Image-Pro as individual tiles
	Send to Image-Pro as Sequence
	Auto-transfer during standard scan or at completion of scanning
	User selection of transfer area
	Transfer of image calibration and stage position information

Auto-Pro Macro Support

	Run Auto-Pro macro on tile acquisition during standard scan
	Return processed tile to Surveyor mosaic after macro during standard scanning
	Execute Surveyor scanning from Auto-Pro macros
	Execute mosaic transfer and reset from Auto-Pro macros
	Set pattern origin from Auto-Pro macros

Live Image Preview and Capture

	Single frame image capture using standard Image-Pro acquisition facilities
	Surveyor image setup dialog, including shading correction
	Calibrated graticule in live Preview window

Software Joystick Window

	XY stage control joystick
	Z focus control joystick
	Multiple joystick sensitivities
	Predictive focus and autofocus
